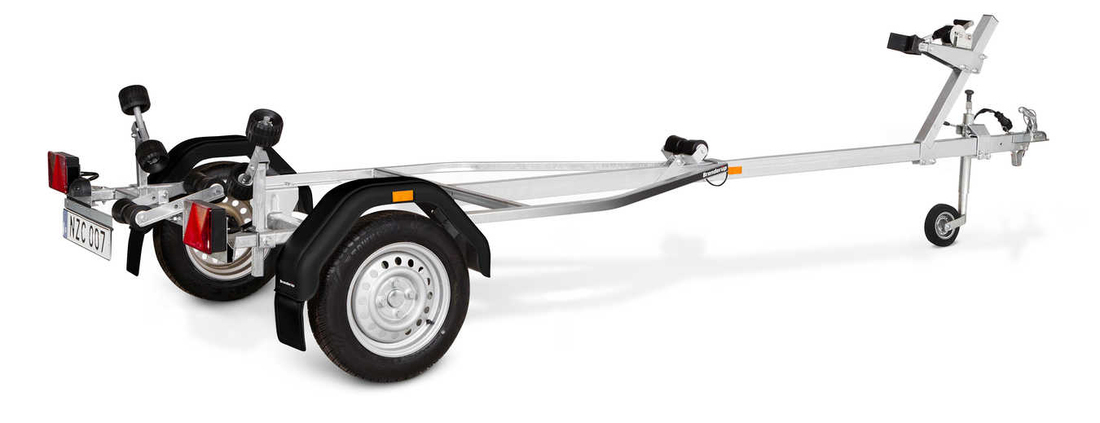

150500UB

Features and benefits

Keel roller cradle

Height adjustable in high quality

Jockey wheel

Jockey wheel included as standard equipment for easy handling of trailer when not connected to the car

Separate fixed lamps

For smooth and easy loading and unloading

Multi-adjustable high quality premium rollers

Possible to adjust in height and width.

Adjustable winch tower

Galvanized chassis

Extends the life time for your trailer.

Specifications Accessories Features and benefits

Specifications

150500UB
Article number 311935
Gross weight (kg) ? 500
Load (kg) ? 370
Unladen weight (kg) 130
Ext dimensions (cm) ? 455x153
Loading height (mm) 500
Tip-protection No
Brakes No
Number of axels 1
Adjustable Axle Yes
Tyre dimension 135/80R13
No of wheelbolts 4
Rim type Steel
Mudguards Non standable
Fully covered mudguards No
Adaptercable 13
Plug connection type ? Straight
Coupling Steel sheet
Max boat lenght (m) 4.7
Max boat lenght (ft) 15
Loading system Rollers
Keel rolls 3
Side rolls 4
Winch Manual
Lights included Yes
Light panel model Separated
EAN 5702623119354

Useful with

  • Walking plank

    1615x200mm, Anti slip protected, complete with brackets for mounting.
    Art nr103410

  • Stop wedge

    Black plastic 800kg (max total weight 2500kg)
    Art nr306828

  • Lashing eye

    60x40mm for Jetski, with bolt & nut
    Art nr309681

  • Coupler lock

    Combilock green 60mm for coupler Albe B50-X7,7 (Obs! Albe B50-X finns i olika varianter.) AL-KO AK7 / AK10 / AK75/S / AK160 / AK270 / AK300 / AK 75/S Knott K 7,5 / K 14 Winterhoff WW 8-C, Mounting bolt M12 68/98mm
    Art nr104273

  • Alu X8 155/80R13

    Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg
    Art nr316169

  • Alu X8 155/80R13 (mounted)

    Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg, mounted on trailer
    Art nr316169M

  • Transparts trailer lock

    Trailer lock with long shank pad lock. Fits coupling in sheet metal and smaller cast, 1205, 2205, 2270, 4260, FS1425, LV, MC. For larger cast ball joints use 312519
    Art nr313945

  • Tie down kit

    4 pieces with straps 2000mm & tightener. For fastening of the boat to the trailer, max. 2500kg
    Art nr106069

  • Extension bracket

    Height increase bracket for keel roller, adjust height 60-80 mm, mounting kit 307558
    Art nr103022
