New

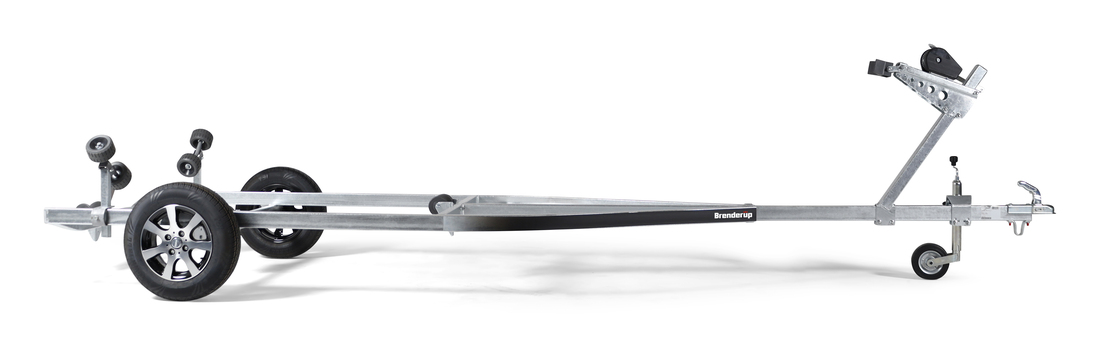

ST8518850

Features and benefits

Fully protected x-line winch

Winch with cover to protect the belt from weather exposure and also reducing the risk of crushing damages.

Multi-adjustable double rear side rollers

Equipped with double side rollers in order to better protect your boat

Reinforced keel roller

Reinforced keel roller with adjustable height

Galvanized chassis

Extends the life time for your trailer.

Specifications Accessories Features and benefits

Specifications

ST8518850
Article number 306491
Gross weight (kg) ? 1000
Load (kg) ? 850
Unladen weight (kg) 150
Ext dimensions (cm) ? 515x180
Loading height (mm) 350
Tip-protection No
Brakes No
Number of axels 1
Adjustable Axle No
Tyre dimension 155R13
No of wheelbolts 4
Rim type Steel
Coupling Steel sheet
Max boat lenght (m) 5.5
Max boat lenght (ft) 18
Loading system Rollers
Keel rolls 3
Side rolls 4
Winch Manual
Lights included No
EAN 5702623064913

Useful with

  • Stop wedge

    Black plastic 800kg (max total weight 2500kg)
    Art nr306828

  • Coupler lock

    Combilock green 60mm for coupler Albe B50-X7,7 (Obs! Albe B50-X finns i olika varianter.) AL-KO AK7 / AK10 / AK75/S / AK160 / AK270 / AK300 / AK 75/S Knott K 7,5 / K 14 Winterhoff WW 8-C, Mounting bolt M12 68/98mm
    Art nr104273

  • Triangular reflector

    LGF-sign for slow-moving vehicles, ex. tractors, tractor trolleys, agricultural equipment, A tractors, moped cars, boat pickup trailers, etc. With mounting bracket
    Art nr106415

  • Alu X8 155/80R13

    Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg
    Art nr316169

  • Alu X8 155/80R13 (mounted)

    Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg, mounted on trailer
    Art nr316169M

  • Winch DL1402

    With black cover & strap 7500mm for maximum tensile weight 635kg
    Art nr306143

  • Transparts trailer lock

    Trailer lock with long shank pad lock. Fits coupling in sheet metal and smaller cast, 1205, 2205, 2270, 4260, FS1425, LV, MC. For larger cast ball joints use 312519
    Art nr313945

  • Tie down kit

    4 pieces with straps 2000mm & tightener. For fastening of the boat to the trailer, max. 2500kg
    Art nr106069
