New and 3 year warranty

ST242000TB ASR X

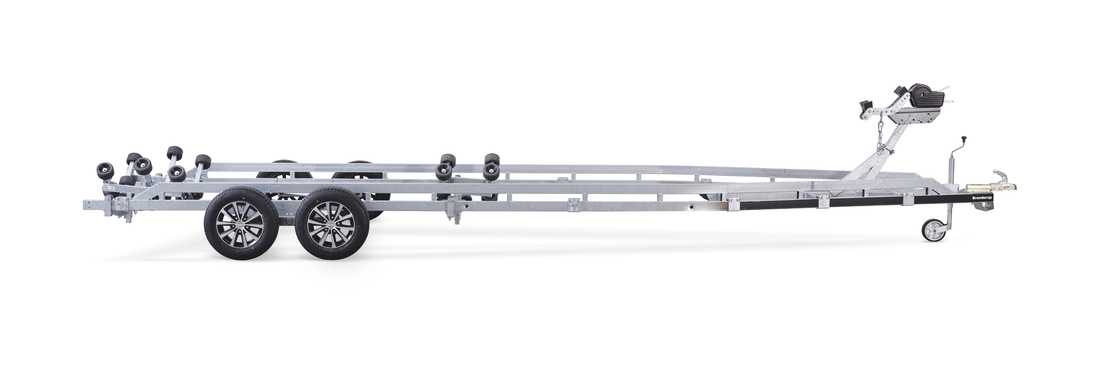

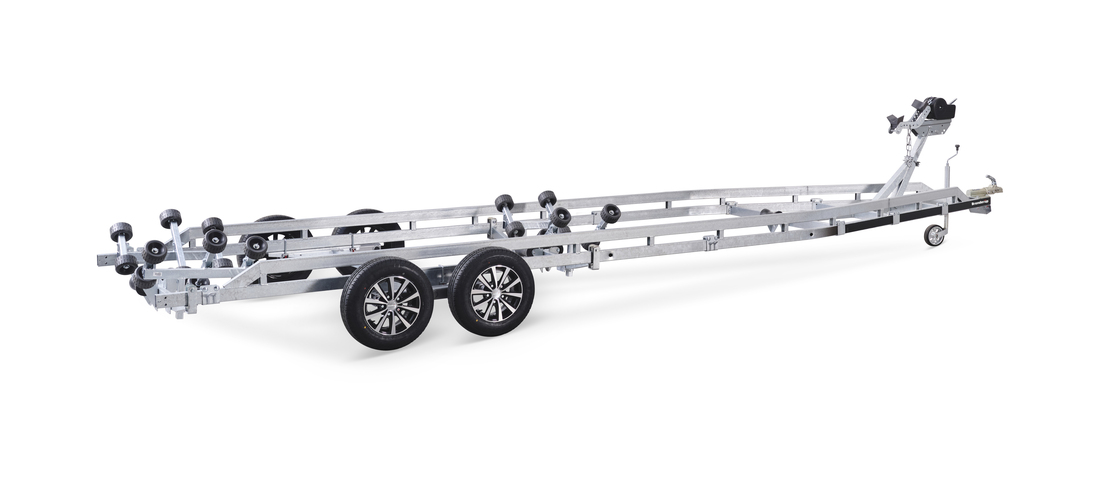

Båtupptagningsvagn för båtar upp till 24 fot. Utrustad med heavy duty adaptiv superrullsvagga, justerbara förstärkta kölrullar och sidorullar av X-line-kvalitet för enkel anpassning till din båt. Varmgalvaniserat chassi för lång hållbarhet. Vinsch och vinschtorn som är enkelt att justera, vinschtornet är även utrustat med en extra säkerhetsvajer för användning vid transport. Båttrailern på bilden kan vara extrautrustad.

Features and benefits

Fully protected x-line winch

Winch with cover to protect the belt from weather exposure and also reducing the risk of crushing damages.

Reinforced chassis

Reinforced keel roller

Reinforced keel roller with adjustable height

Safety wire on winch tower

Extra safety wire for securing the boat on the trailer, shall be used in combination with other strapping options.

Galvanized chassis

Extends the life time for your trailer.

Specifications Accessories Features and benefits

Specifications

ST242000TB ASR X
Article number 316137
Gross weight (kg) ? 2380
Load (kg) ? 2000
Unladen weight (kg) 380
Ext dimensions (cm) ? 730x233
Loading height (mm) 350
Brakes No
Number of axels 2
Adjustable Axle Yes
Tyre dimension 185R14
No of wheelbolts 5
Rim type Steel
Coupling Casted Iron
Max boat lenght (m) 7.2
Max boat lenght (ft) 24
Loading system Adaptive Super Rollers
Keel rolls 5
Side rolls 20
Winch Manual
EAN 5702623161377

Useful with

  • Walking plank

    1615x200mm, Anti slip protected, complete with brackets for mounting.
    Art nr103410
  • Stop wedge

    Black plastic 800kg (max total weight 2500kg)
    Art nr306828
  • Spare wheel holder

    Mount on trailer for easy access and transportation of sparewheel. For 16-30" boattrailer. Mounting kit for drawbar with U bolts.
    Art nr115419
  • Winch bracket

    For electric winch Warn, with quick lock including mounting kit
    Art nr102726
  • Triangular reflector

    LGF-sign for slow-moving vehicles, ex. tractors, tractor trolleys, agricultural equipment, A tractors, moped cars, boat pickup trailers, etc. With mounting bracket
    Art nr106415
  • Walking plank

    3500x200mm, Anti slip protected, complete with brackets for mounting.
    Art nr103409
  • Stand for boat

    Stand for easier access to the boat whilst it's on the trailer
    Art nr102382
  • Transparts trailer lock

    Trailer lock with long shank pad lock. Fits coupling in sheet metal and smaller cast, 1205, 2205, 2270, 4260, FS1425, LV, MC. For larger cast ball joints use 312519
    Art nr313945
  • Tie down kit

    4 pieces with straps 2000mm & tightener. For fastening of the boat to the trailer, max. 2500kg
    Art nr106069
  • Battery box

    Complete with console and mounting kit. For storage of cargo straps, battery, charger etc.
    Art nr304613
