New and 3 year warranty

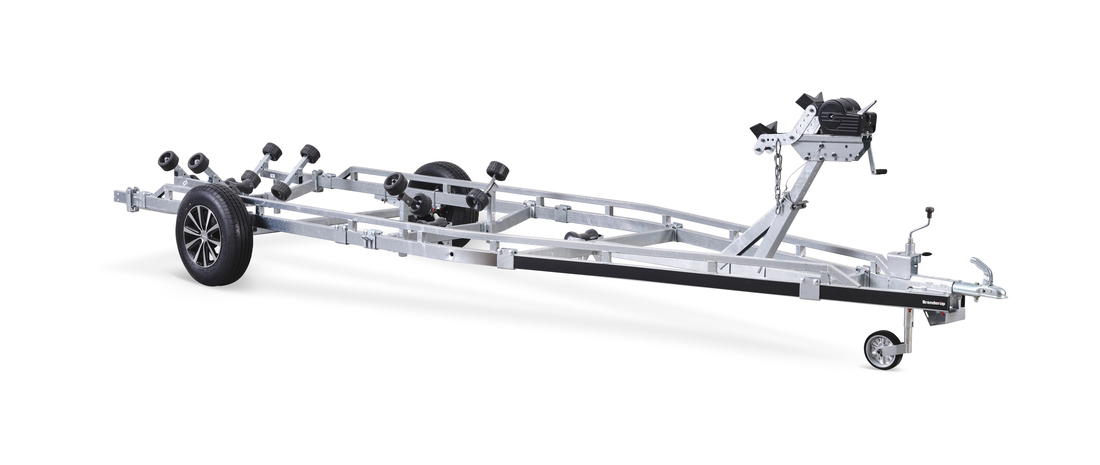

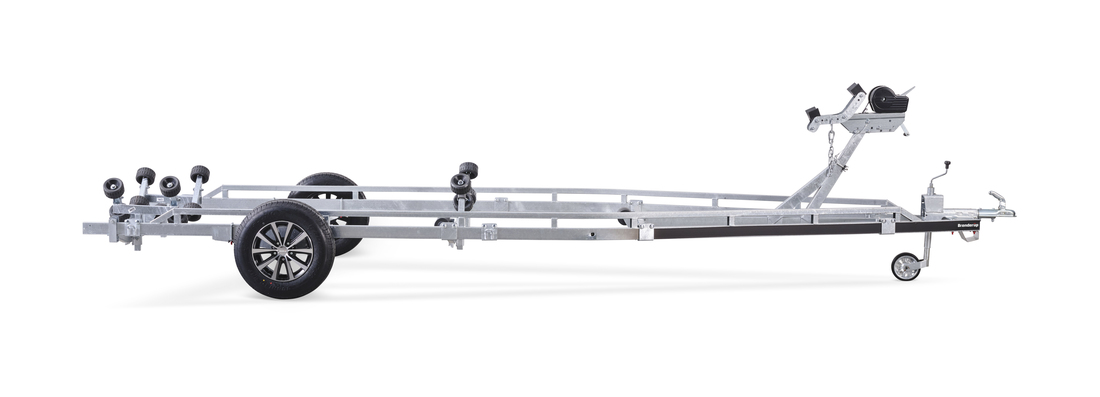

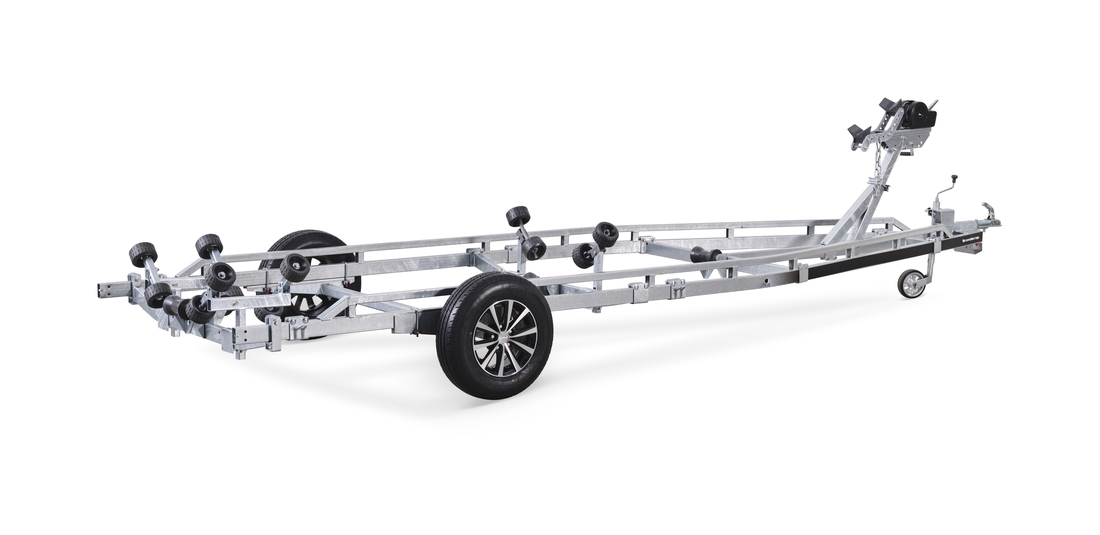

ST221500 ASR X

Båtupptagningsvagn för båtar upp till 22 fot. Utrustad med adaptiv superrullar, justerbara förstärkta kölrullar av X-line-kvalitet för enkel anpassning till din båt. Varmgalvaniserat chassi för lång hållbarhet. Vinsch och vinschtorn som är enkelt att justera, vinschtornet är även utrustat med en extra säkerhetsvajer för användning vid transport. Båttrailern på bilden kan vara extrautrustad.

Features and benefits

Fully protected x-line winch

Winch with cover to protect the belt from weather exposure and also reducing the risk of crushing damages.

Reinforced chassis

Safety wire on winch tower

Extra safety wire for securing the boat on the trailer, shall be used in combination with other strapping options.

Galvanized chassis

Extends the life time for your trailer.

Specifications Accessories Features and benefits

Specifications

ST221500 ASR X
Article number 316136
Gross weight (kg) ? 1790
Load (kg) ? 1500
Unladen weight (kg) 290
Ext dimensions (cm) ? 630x215
Loading height (mm) 470
Brakes No
Number of axels 1
Adjustable Axle Yes
Tyre dimension 185R14C
No of wheelbolts 5
Rim type Steel
Coupling Steel sheet
Max boat lenght (m) 6.6
Max boat lenght (ft) 22
Loading system Adaptive Super Rollers
Keel rolls 4
Side rolls 12
Winch Manual
EAN 5702623161360

Useful with

  • Stop wedge

    Black plastic 800kg (max total weight 2500kg)
    Art nr306828
  • Spare wheel holder

    Mount on trailer for easy access and transportation of sparewheel. For 16-30" boattrailer. Mounting kit for drawbar with U bolts.
    Art nr115419
  • Triangular reflector

    LGF-sign for slow-moving vehicles, ex. tractors, tractor trolleys, agricultural equipment, A tractors, moped cars, boat pickup trailers, etc. With mounting bracket
    Art nr106415
  • Walking plank

    3500x200mm, Anti slip protected, complete with brackets for mounting.
    Art nr103409
  • Stand for boat

    Stand for easier access to the boat whilst it's on the trailer
    Art nr102382
  • Transparts trailer lock

    Trailer lock with long shank pad lock. Fits coupling in sheet metal and smaller cast, 1205, 2205, 2270, 4260, FS1425, LV, MC. For larger cast ball joints use 312519
    Art nr313945
  • Tie down kit

    4 pieces with straps 2000mm & tightener. For fastening of the boat to the trailer, max. 2500kg
    Art nr106069
