New

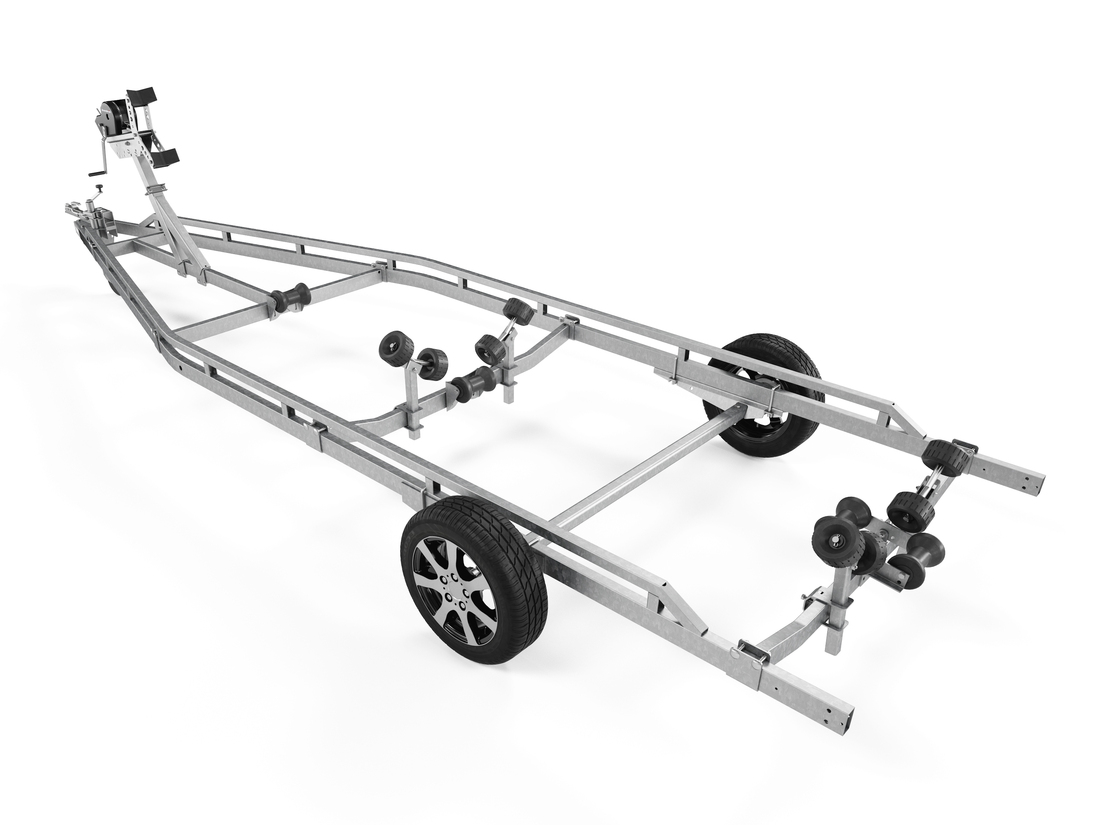

ST11020

Features and benefits

Fully protected x-line winch

Winch with cover to protect the belt from weather exposure and also reducing the risk of crushing damages.

Keel roller cradle

Height adjustable in high quality

Multi-adjustable double front side rollers

Equipped with double side rollers in order to better protect your boat

Reinforced keel roller

Reinforced keel roller with adjustable height

Safety wire on winch tower

Extra safety wire for securing the boat on the trailer, shall be used in combination with other strapping options.

Galvanized chassis

Extends the life time for your trailer.

Specifications Accessories Features and benefits

Specifications

ST11020
Article number 306473
Gross weight (kg) ? 1520
Load (kg) ? 1250
Unladen weight (kg) 270
Ext dimensions (cm) ? 630x215
Loading height (mm) 490
Tip-protection No
Brakes No
Number of axels 1
Adjustable Axle Yes
Tyre dimension 185R14
No of wheelbolts 5
Rim type Steel
Coupling Steel sheet
Max boat lenght (m) 6.6
Max boat lenght (ft) 22
Loading system Rollers
Keel rolls 4
Side rolls 8
Winch Manual
Lights included No
EAN 5702623064739

Useful with

  • Stop wedge

    Black plastic 800kg (max total weight 2500kg)
    Art nr306828
  • Spare wheel holder

    Mount on trailer for easy access and transportation of sparewheel. For 16-30" boattrailer. Mounting kit for drawbar with U bolts.
    Art nr115419
  • Winch kit DL2000 AB

    Vinschstativ med vinsch, dubbla svarta nosstöd & svart kåpa 2015-
    Art nr306315
  • Triangular reflector

    LGF-sign for slow-moving vehicles, ex. tractors, tractor trolleys, agricultural equipment, A tractors, moped cars, boat pickup trailers, etc. With mounting bracket
    Art nr106415
  • Walking plank

    3500x200mm, Anti slip protected, complete with brackets for mounting.
    Art nr103409
  • Alu X10 185R14C (mounted)

    Wheel on 10 spoke black/silver aluminium rim, 5-hole, 185R14C, 900kg, mounted on trailer
    Art nr316171M
  • Stand for boat

    Stand for easier access to the boat whilst it's on the trailer
    Art nr102382
  • Alu X10 185R14C

    Wheel on 10 spoke black/silver aluminium rim, 5-hole, 185R14C, 900kg
    Art nr316171
  • Transparts trailer lock

    Trailer lock with long shank pad lock. Fits coupling in sheet metal and smaller cast, 1205, 2205, 2270, 4260, FS1425, LV, MC. For larger cast ball joints use 312519
    Art nr313945
  • Tie down kit

    4 pieces with straps 2000mm & tightener. For fastening of the boat to the trailer, max. 2500kg
    Art nr106069
