263500TB SR X
- Easy-to-use Adjustable Telescoping Lights
- Fully waterproof LED lamps
Features and benefits
Telescopic lights
Telescopic extendable individual lights. Light units can be adjusted behind the trailer to increase your visibility on the road.
LED lamps
Enhanced visibility, durability, and safety with fully waterproof LED lamps, according to the IP69K standard and including lamp, connector, and cable.
Cables protected
Closed V-shape drawbar for protection of cables
Keel roller cradle
Height adjustable in high quality
Stainless steel brake wires
With a trailer with brakes, safety is higher and the braking distance is shorter.
Multi-adjustable double front side rollers
Equipped with double side rollers in order to better protect your boat
Waterproof wheel bearings
Allows you to drain the wheels of the boat and reducing the risk for corrosion on the brakes of the trailer.
Standable fully protected mudguards
Standable mudguards (90kg) and fully inside protected in order to protect the boat from gravel and spattering from the road.
Heavy duty super roller cradle
Super rollers pair of 8 X-line rollers

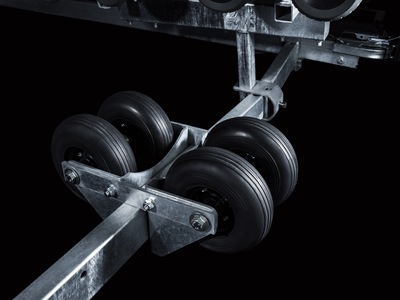

Heavy duty super soft keel rollers
Heavy duty super soft keel rollers for extra protection of the hull of the trailer.
Reinforced keel roller
Reinforced keel roller with adjustable height
Safety wire on winch tower
Extra safety wire for securing the boat on the trailer, shall be used in combination with other strapping options.
Galvanized chassis
Extends the life time for your trailer.
Adjustable axles
By changing the wheelbase you can share the weight in an optimal way.
Specifications
| 263500TB SR X | |
| Article number | 317888 |
| Gross weight (kg) ? | 3500 |
| Load (kg) ? | 2800 |
| Unladen weight (kg) | 700 |
| Ext dimensions (cm) ? | 804x221 |
| Brakes | Yes |
| Number of axels | 2 |
| Adjustable Axle | Yes |
| Tyre dimension | 185R14C |
| No of wheelbolts | 5 |
| Rim type | Steel |
| Mudguards | Standable |
| Fully covered mudguards | Yes |
| Adaptercable | 13 |
| Plug connection type ? | Spiral |
| Max boat lenght (m) | 7.8 |
| Max boat lenght (ft) | 26 |
| Loading system | Super rolls |
| Keel rolls | 10 |
| Side rolls | 24 |
| Winch | Manual |
| Lights included | Yes |
| Light panel model | Telescopic_LED |
| EAN | 5702623178887 |
