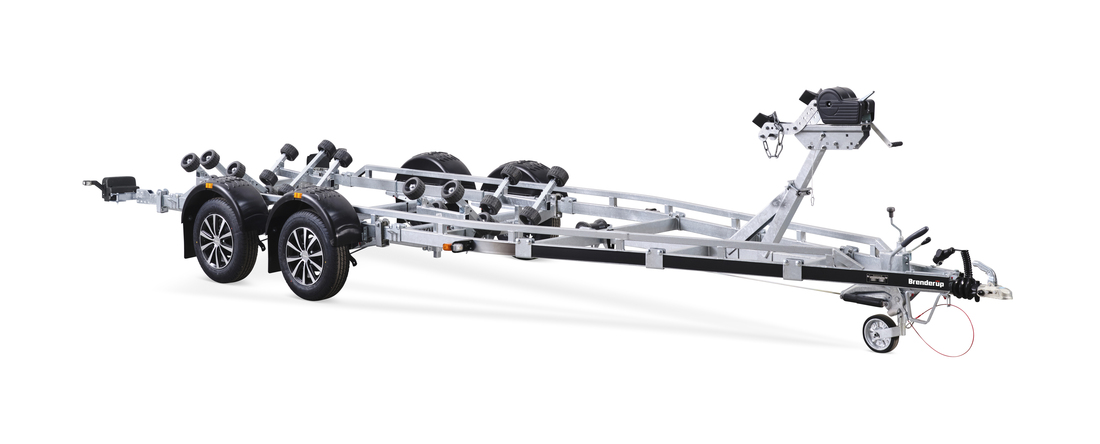

242000TB ASR X

  1. Easy-to-use Adjustable Telescoping Lights
  2. Fully waterproof LED lamps

Features and benefits

Telescopic lights

Telescopic extendable individual lights. Light units can be adjusted behind the trailer to increase your visibility on the road.

LED lamps

Enhanced visibility, durability, and safety with fully waterproof LED lamps, according to the IP69K standard and including lamp, connector, and cable.

Cables protected

Closed V-shape drawbar for protection of cables

Stainless steel brake wires

With a trailer with brakes, safety is higher and the braking distance is shorter.

Waterproof wheel bearings

Allows you to drain the wheels of the boat and reducing the risk for corrosion on the brakes of the trailer.

Standable fully protected mudguards

Standable mudguards (90kg) and fully inside protected in order to protect the boat from gravel and spattering from the road.

Reinforced keel roller

Reinforced keel roller with adjustable height

Safety wire on winch tower

Extra safety wire for securing the boat on the trailer, shall be used in combination with other strapping options.

Galvanized chassis

Extends the life time for your trailer.

Specifications Accessories Features and benefits

Specifications

242000TB ASR X
Article number 317802
Gross weight (kg) ? 2000
Load (kg) ? 1500
Unladen weight (kg) 500
Ext dimensions (cm) ? 754x221
Brakes Yes
Number of axels 2
Adjustable Axle Yes
Tyre dimension 155R13c
No of wheelbolts 5
Rim type Steel
Mudguards Standable
Fully covered mudguards Yes
Adaptercable 13
Plug connection type ? Spiral
Max boat lenght (m) 7.2
Max boat lenght (ft) 24
Loading system Super rolls
Keel rolls 5
Side rolls 20
Winch Manual
Lights included Yes
Light panel model Telescopic_LED
EAN 5702623178023

Useful with

  • Wheel alu rim

    155/R13", 4 holes, 500kg, with black aluminium rim
    Art nr108847

  • Walking plank

    1615x200mm, Anti slip protected, complete with brackets for mounting.
    Art nr103410

  • Spare wheel holder

    Mount on trailer for easy access and transportation of sparewheel. For 16-30" boattrailer. Mounting kit for drawbar with U bolts.
    Art nr115419

  • Toolbox Boat/Universal Kit

    Black plastic toolbox, 52x22x28 cm. Use it to store tools, winch or lashing bands when not in use. The toolbox is equipped with a lock incl. two keys. The kit includes bracket and mounting kit. Fits for boat trailers and some other models.
    Art nr312741

  • Battery

    Maxxima 50AH
    Art nr106583

  • Mounting kit battery winch

    For elevated winch tower, fits together with battery 106583 and battery box 304613
    Art nr102723

  • Transparts trailer lock

    Trailer lock with disc pad lock for casted couplings. Fits all larger cast ball couplings (from 2000kg upwards). For ball coupling in sheet metal or smaller cast 313945.
    Art nr312519

  • Walking plank

    3500x200mm, Anti slip protected, complete with brackets for mounting.
    Art nr103409

  • Boat support

    1 piece complete including mounting kit. Boat support that's providing larger contact area to reduce impact on boat hull. Good for long transportation and/or when using trailer as permanent boat storage.
    Art nr102383

  • Stand for boat

    Stand for easier access to the boat whilst it's on the trailer
    Art nr102382

  • Brake wash kit (mount.)

    Equipment to make it easier to rinse saltwater from the brake drum using a regular garden hose and fresh water. For brake drum 200x50. Mounted on trailer
    Art nr105181M

  • Tie down kit

    4 pieces with straps 2000mm & tightener. For fastening of the boat to the trailer, max. 2500kg
    Art nr106069

  • Extension bracket

    Height increase bracket for keel roller, adjust height 60-80 mm, mounting kit 307558
    Art nr103022

  • Battery box

    Complete with console and mounting kit. For storage of cargo straps, battery, charger etc.
    Art nr304613
