Rope hook
Short model with bolts, 80x40mm for frame mounting, max load 400daN ( approx. 400kg)
201500B SRX
Features and benefits
Cables protected
Closed V-shape drawbar for protection of cables
Keel roller cradle
Height adjustable in high quality
Quick-release light ramp
Easy removable light ramp with quick connect.
Multi-adjustable double front side rollers
Equipped with double side rollers in order to better protect your boat
Waterproof wheel bearings
Allows you to drain the wheels of the boat and reducing the risk for corrosion on the brakes of the trailer.
Standable fully protected mudguards
Standable mudguards (90kg) and fully inside protected in order to protect the boat from gravel and spattering from the road.
Super roller cradle
Super rollers pair of 4
Reinforced keel roller
Reinforced keel roller with adjustable height
Safety wire on winch tower
Extra safety wire for securing the boat on the trailer, shall be used in combination with other strapping options.
Galvanized chassis
Extends the life time for your trailer.
Adjustable axles
By changing the wheelbase you can share the weight in an optimal way.

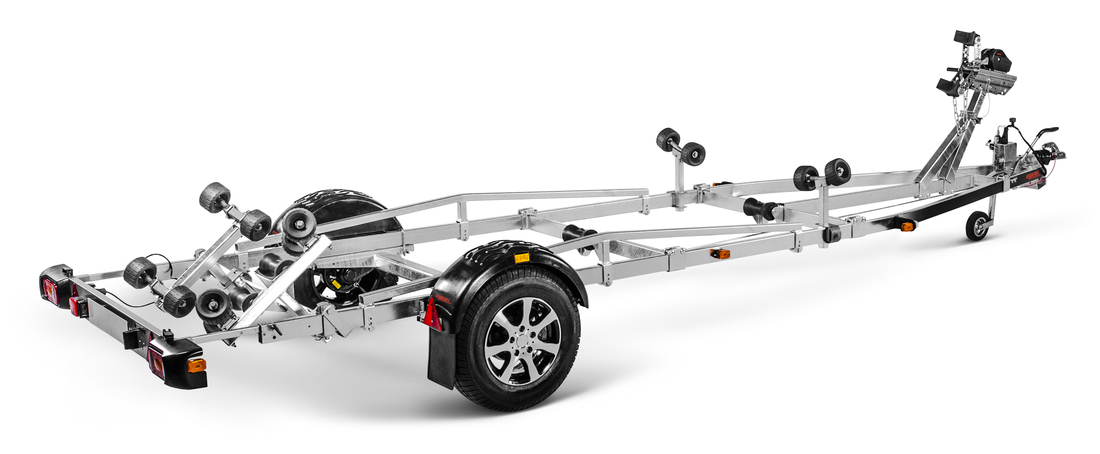

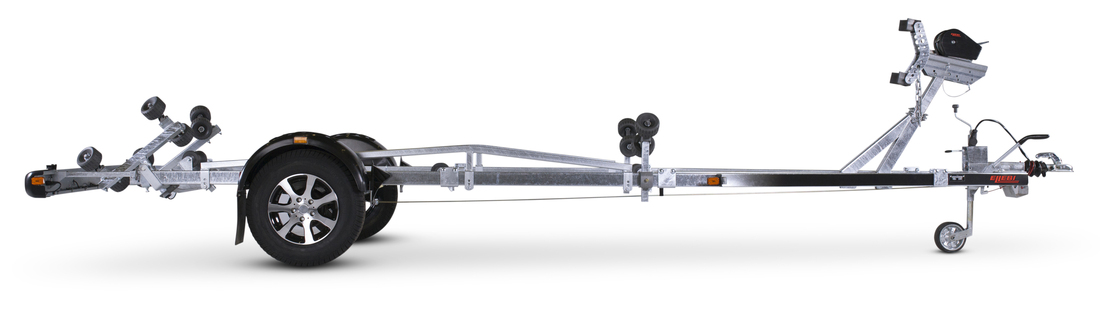

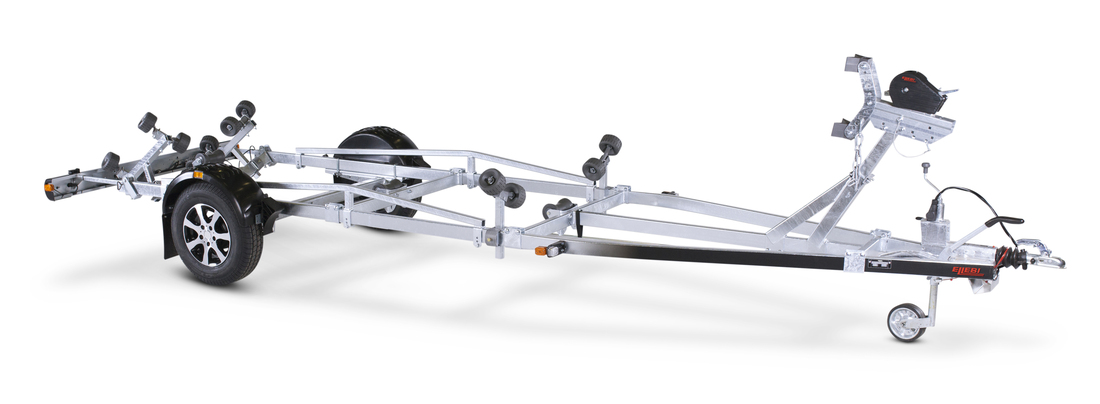

Specifications
| 201500B SRX | |
| Article number | 312104 |
| Gross weight (kg) ? | 1500 |
| Load (kg) ? | 1160 |
| Unladen weight (kg) | 340 |
| Ext dimensions (cm) ? | 612x191 |
| Loading height (mm) | 450 |
| Tip-protection | No |
| Brakes | Yes |
| Number of axels | 1 |
| Adjustable Axle | Yes |
| Tyre dimension | 185R14C |
| No of wheelbolts | 5 |
| Rim type | Steel |
| Mudguards | Standable |
| Fully covered mudguards | Yes |
| Adaptercable | 13 |
| Plug connection type ? | Straight |
| Coupling | Casted |
| Max boat lenght (m) | 5.7 |
| Max boat lenght (ft) | 20 |
| Loading system | Super rolls |
| Keel rolls | 4 |
| Side rolls | 12 |
| Winch | Manual |
| Lights included | Yes |
| Light panel model | Ramp |
| EAN | 5702623121043 |
