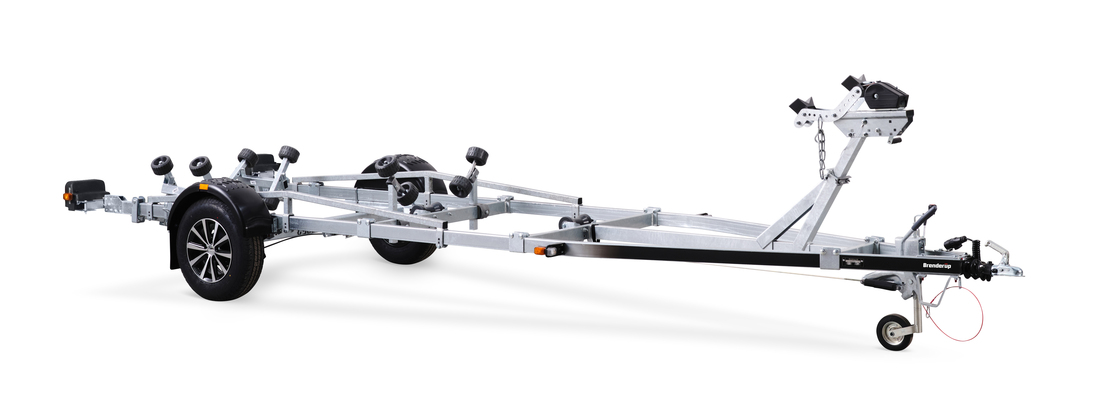

201300B ASR X

  1. Easy-to-use Adjustable Telescoping Lights
  2. Fully waterproof LED lamps

Features and benefits

Telescopic lights

Telescopic extendable individual lights. Light units can be adjusted behind the trailer to increase your visibility on the road.

LED lamps

Enhanced visibility, durability, and safety with fully waterproof LED lamps, according to the IP69K standard and including lamp, connector, and cable.

Stainless steel brake wires

With a trailer with brakes, safety is higher and the braking distance is shorter.

Waterproof wheel bearings

Allows you to drain the wheels of the boat and reducing the risk for corrosion on the brakes of the trailer.

Standable fully protected mudguards

Standable mudguards (90kg) and fully inside protected in order to protect the boat from gravel and spattering from the road.

Adjustable axles

By changing the wheelbase you can share the weight in an optimal way.

Specifications Accessories Features and benefits

Specifications

201300B ASR X
Article number 317795
Gross weight (kg) ? 1300
Load (kg) ? 980
Unladen weight (kg) 320
Ext dimensions (cm) ? 611x191
Brakes Yes
Number of axels 1
Adjustable Axle Yes
Tyre dimension 195/70R14
No of wheelbolts 5
Rim type Steel
Mudguards Standable
Fully covered mudguards Yes
Adaptercable 13
Plug connection type ? Spiral
Max boat lenght (m) 6
Max boat lenght (ft) 20
Loading system Adaptive Super Rollers
Keel rolls 4
Side rolls 12
Winch Manual
Lights included Yes
Light panel model Telescopic_LED
EAN 5702623177958

Useful with

  • Supersoft step keel kit

    With 4 supersoft rollers Ø200x65 Hole 25mm, maximum keel height 80mm.
    Art nr101795

  • Walking plank

    1615x200mm, Anti slip protected, complete with brackets for mounting.
    Art nr103410

  • Spare wheel holder

    Mount on trailer for easy access and transportation of sparewheel. For 16-30" boattrailer. Mounting kit for drawbar with U bolts.
    Art nr115419

  • Toolbox Boat/Universal Kit

    Black plastic toolbox, 52x22x28 cm. Use it to store tools, winch or lashing bands when not in use. The toolbox is equipped with a lock incl. two keys. The kit includes bracket and mounting kit. Fits for boat trailers and some other models.
    Art nr312741

  • Battery

    Maxxima 50AH
    Art nr106583

  • Mounting kit battery winch

    For elevated winch tower, fits together with battery 106583 and battery box 304613
    Art nr102723

  • Brake wash kit

    Equipment to make it easier to rinse saltwater from the brake drum using a regular garden hose and fresh water. For brake drum 200x50.
    Art nr105181

  • Winch bracket

    For electric winch Warn, with quick lock including mounting kit
    Art nr102726

  • Walking plank

    3500x200mm, Anti slip protected, complete with brackets for mounting.
    Art nr103409

  • Electric Winch Warn 2000DC

    A compact tool winch with great features. Designed to pull lighter loads, this winch will help you move more material in less time than before. Traction 907 kg. Weight 8.2 kg. Recommended cable 10.7m
    Art nr103567

  • Shock absorber kit

    2 pieces. Up to 900kg for single axle and 1600kg for boogi axles
    Art nr113968

  • Boat support

    1 piece complete including mounting kit. Boat support that's providing larger contact area to reduce impact on boat hull. Good for long transportation and/or when using trailer as permanent boat storage.
    Art nr102383

  • Stand for boat

    Stand for easier access to the boat whilst it's on the trailer
    Art nr102382

  • Alu X10 195/70R14

    Wheel on 10 spoke black/silver aluminium rim, 5-hole, 195/70R14, 710kg
    Art nr316170

  • Brake wash kit (mount.)

    Equipment to make it easier to rinse saltwater from the brake drum using a regular garden hose and fresh water. For brake drum 200x50. Mounted on trailer
    Art nr105181M

  • Transparts trailer lock

    Trailer lock with long shank pad lock. Fits coupling in sheet metal and smaller cast, 1205, 2205, 2270, 4260, FS1425, LV, MC. For larger cast ball joints use 312519
    Art nr313945

  • Tie down kit

    4 pieces with straps 2000mm & tightener. For fastening of the boat to the trailer, max. 2500kg
    Art nr106069

  • Extension bracket

    Height increase bracket for keel roller, adjust height 60-80 mm, mounting kit 307558
    Art nr103022

  • Battery box

    Complete with console and mounting kit. For storage of cargo straps, battery, charger etc.
    Art nr304613
