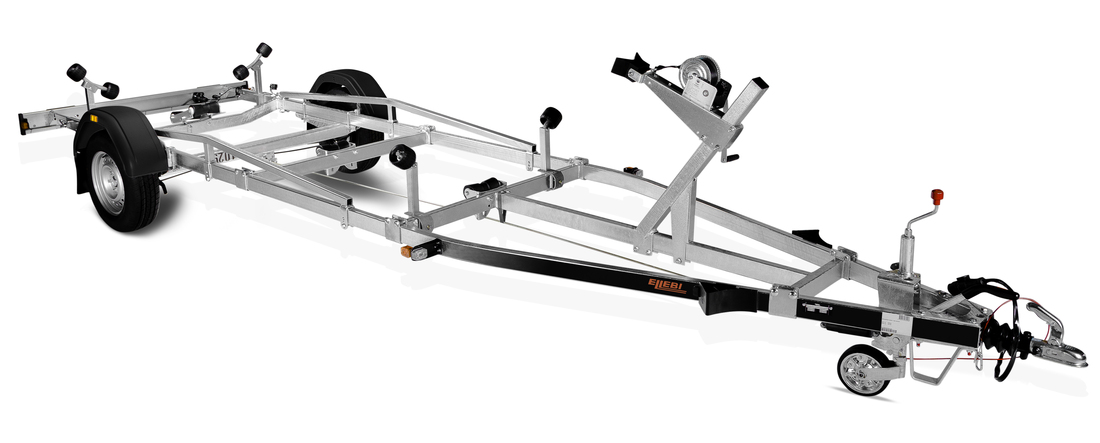

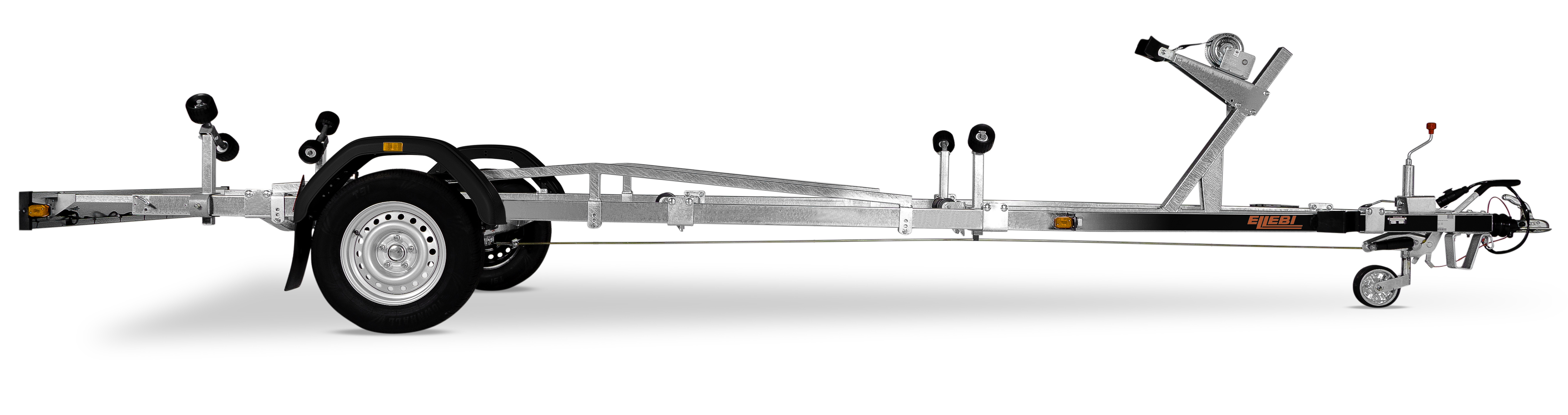

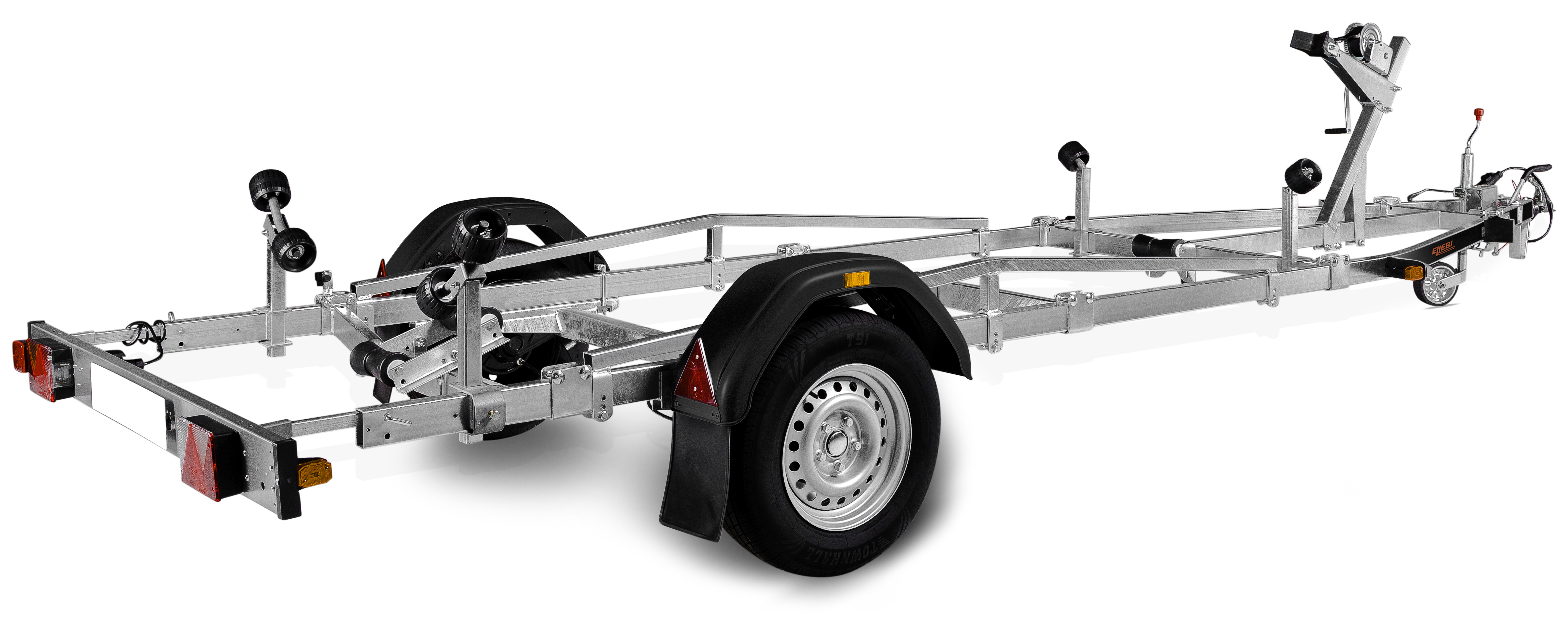

201300B

Features and benefits

Cables protected

Closed V-shape drawbar for protection of cables

Keel roller cradle

Height adjustable in high quality

Quick-release light ramp

Easy removable light ramp with quick connect.

Waterproof wheel bearings

Allows you to drain the wheels of the boat and reducing the risk for corrosion on the brakes of the trailer.

Adjustable winch tower

Galvanized chassis

Extends the life time for your trailer.

Adjustable axles

By changing the wheelbase you can share the weight in an optimal way.

Specifications Accessories Features and benefits

Specifications

201300B
Article number 312114
Gross weight (kg) ? 1300
Load (kg) ? 980
Unladen weight (kg) 320
Ext dimensions (cm) ? 603x191
Loading height (mm) 420
Tip-protection No
Brakes Yes
Number of axels 1
Adjustable Axle Yes
Tyre dimension 195/70R14
No of wheelbolts 5
Rim type Steel
Mudguards Non standable
Fully covered mudguards No
Adaptercable 13
Plug connection type ? Straight
Coupling Steel sheet
Max boat lenght (m) 5.6
Max boat lenght (ft) 20
Loading system Rollers
Keel rolls 4
Side rolls 6
Winch Manual
Lights included Yes
Light panel model Ramp
EAN 5702623121142

Useful with

  • Rope hook

    Short model with bolts, 80x40mm for frame mounting, max load 400daN ( approx. 400kg)
    Art nr103418

  • Walking plank

    1615x200mm, Anti slip protected, complete with brackets for mounting.
    Art nr103410

  • Lashing eye

    60x40mm for Jetski, with bolt & nut
    Art nr309681

  • Spare wheel holder

    Mount on trailer for easy access and transportation of sparewheel. For 16-30" boattrailer. Mounting kit for drawbar with U bolts.
    Art nr115419

  • Toolbox Boat/Universal Kit

    Black plastic toolbox, 52x22x28 cm. Use it to store tools, winch or lashing bands when not in use. The toolbox is equipped with a lock incl. two keys. The kit includes bracket and mounting kit. Fits for boat trailers and some other models.
    Art nr312741

  • Square tube clamp

    80x40mm, for bar 40x40mm. U-clamp for mounting side support rolls, boat support plates etc.
    Art nr103400

  • Rope hook

    Long model with bolts, 80x40mm for frame mounting
    Art nr103419

  • Brake wash kit

    Equipment to make it easier to rinse saltwater from the brake drum using a regular garden hose and fresh water. For brake drum 200x50.
    Art nr105181

  • Winch

    Winch d/l 2000B w/7,5m strap
    Art nr304987

  • Winch kit

    DL1402LBS / 37095301
    Art nr305450

  • Alu X10 195/70R14 (mounted)

    Wheel on 10 spoke black/silver aluminium rim, 5-hole, 195/70R14, 710kg, mounted on trailer
    Art nr316170M

  • Boat guide kit

    Boat center guide bars, Set of 2 pieces, for easier loading of your boat in current water or windy conditions, does not work with Self adusting cradle, super rollers or straight crossbar.
    Art nr307655

  • Shock absorber kit

    2 pieces. Up to 1350kg for single axle and 2700kg for boogi axles
    Art nr113969

  • Crossbar

    Bended with mounting kit for boat trailers 16/18/20"
    Art nr102410

  • Walking plank

    3500x200mm, Anti slip protected, complete with brackets for mounting.
    Art nr103409

  • Crossbar

    Straight with mounting kit for boat trailers 16/18/20"
    Art nr102406

  • Boat support

    1 piece complete including mounting kit. Boat support that's providing larger contact area to reduce impact on boat hull. Good for long transportation and/or when using trailer as permanent boat storage.
    Art nr102383

  • Winch DL1402 A

    With strap 7500mm, maximum tensile weight 635kg
    Art nr103564

  • Stand for boat

    Stand for easier access to the boat whilst it's on the trailer
    Art nr102382

  • Alu X10 195/70R14

    Wheel on 10 spoke black/silver aluminium rim, 5-hole, 195/70R14, 710kg
    Art nr316170

  • Support kit

    Hull support kit for transport stabilisation, 4 pieces with bracket
    Art nr113168

  • Tie down kit

    4 pieces with straps 2000mm & tightener. For fastening of the boat to the trailer, max. 2500kg
    Art nr106069

  • Crossbar

    Bended and tiltable with mounting kit for boat trailers 16/18/20" For rear mounting.
    Art nr102351

  • Extension bracket

    Height increase bracket for keel roller, adjust height 60-80 mm, mounting kit 307558
    Art nr103022

  • Battery box

    Complete with console and mounting kit. For storage of cargo straps, battery, charger etc.
    Art nr304613
