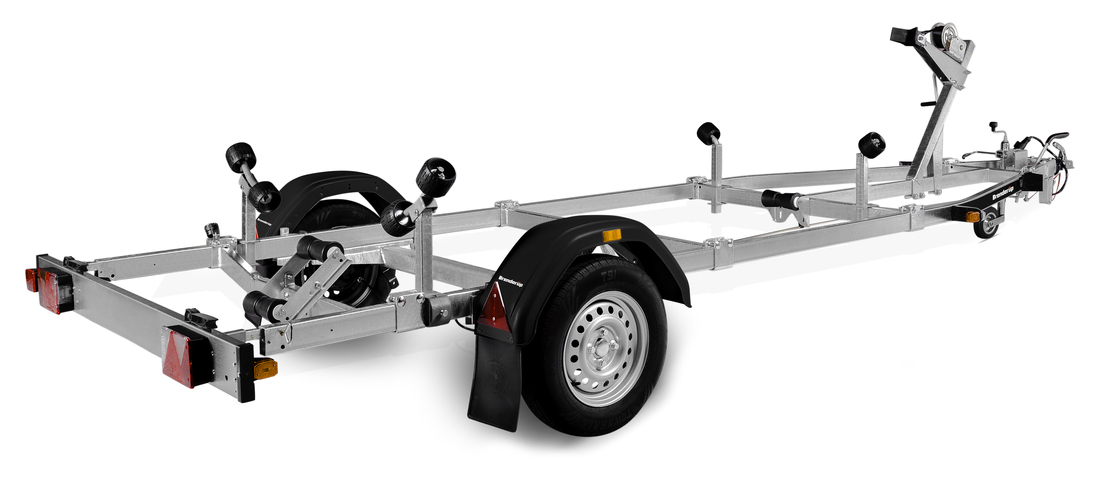

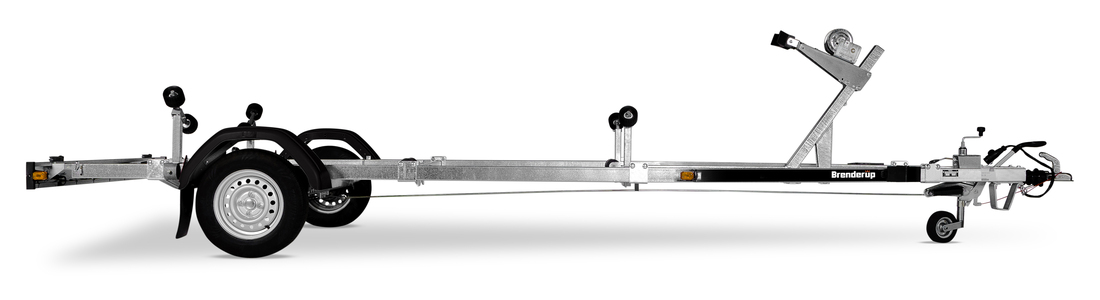

161000B
| Art nr | 311944 |
161000B
Features and benefits
Cables protected
Closed V-shape drawbar for protection of cables
Keel roller cradle
Height adjustable in high quality
Quick-release light ramp
Easy removable light ramp with quick connect.
Waterproof wheel bearings
Allows you to drain the wheels of the boat and reducing the risk for corrosion on the brakes of the trailer.
Adjustable winch tower
Galvanized chassis
Extends the life time for your trailer.
Adjustable axles
By changing the wheelbase you can share the weight in an optimal way.
Specifications
| 161000B | |
| Article number | 312620 |
| Gross weight (kg) ? | 1000 |
| Load (kg) ? | 760 |
| Unladen weight (kg) | 240 |
| Ext dimensions (cm) ? | 535x185 |
| Loading height (mm) | 500 |
| Tip-protection | No |
| Brakes | Yes |
| Number of axels | 1 |
| Adjustable Axle | Yes |
| Tyre dimension | 155R13 |
| No of wheelbolts | 4 |
| Rim type | Steel |
| Mudguards | Non standable |
| Fully covered mudguards | No |
| Adaptercable | 13 |
| Plug connection type ? | Straight |
| Coupling | Steel sheet |
| Max boat lenght (m) | 5 |
| Max boat lenght (ft) | 16 |
| Loading system | Rollers |
| Keel rolls | 3 |
| Side rolls | 6 |
| Winch | Manual |
| Lights included | Yes |
| Light panel model | Ramp |
| EAN | 5702623126208 |
Useful with
Rope hook
Short model with bolts, 80x40mm for frame mounting, max load 400daN ( approx. 400kg)
Walking plank
1615x200mm, Anti slip protected, complete with brackets for mounting.
X-line super roller kit 8X
With 8 grey X-line super rollers, complete 40x40mm
Lashing eye
60x40mm for Jetski, with bolt & nut
Spare wheel holder
Mount on trailer for easy access and transportation of sparewheel. For 16-30" boattrailer. Mounting kit for drawbar with U bolts.
Keel boat equipment
Grey for boat 26"
Rope hook
Long model with bolts, 80x40mm for frame mounting
Brake wash kit
Equipment to make it easier to rinse saltwater from the brake drum using a regular garden hose and fresh water. For brake drum 200x50.
X-line self adjusting cradle rear
For mounting on rear crossbar with grey double X-line roller
Winch
Winch d/l 2000B w/7,5m strapArt nr 304987
X-line self adjusting cradle front
For mounting on front crossbar. Grey/grey double X-line rollers
Boat guide kit
Boat center guide bars, Set of 2 pieces, for easier loading of your boat in current water or windy conditions, does not work with Self adusting cradle, super rollers or straight crossbar.
Shock absorber kit
2 pieces. Up to 1350kg for single axle and 2700kg for boogi axlesWalking plank
3500x200mm, Anti slip protected, complete with brackets for mounting.
Alu X8 155/80R13
Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kgArt nr 316169 Alu X8 155/80R13 (mounted)
Wheel on 8 spoke black/silver aluminium rim, 4-hole, 155/80R13, 500kg, mounted on trailerArt nr 316169M
Boat support
1 piece complete including mounting kit. Boat support that's providing larger contact area to reduce impact on boat hull. Good for long transportation and/or when using trailer as permanent boat storage.
Winch DL1402 A
With strap 7500mm, maximum tensile weight 635kg
Stand for boat
Stand for easier access to the boat whilst it's on the trailer
X-line super roller kit 4X
With 4 grey X-line super rollers, lenght 500mm
Support kit
Hull support kit for transport stabilisation, 4 pieces with bracket
Vinch DL2500AB
Without cover, strap 10000mm, 1134kgArt nr 312913
Winch DL1402
With black cover & strap 7500mm for maximum tensile weight 635kgWinch kit DL1402LBS
Winch stand with winch & black bow snubber
Tie down kit
4 pieces with straps 2000mm & tightener. For fastening of the boat to the trailer, max. 2500kgArt nr 106069
Extension bracket
Height increase bracket for keel roller, adjust height 60-80 mm, mounting kit 307558Art nr 103022
Battery box
Complete with console and mounting kit. For storage of cargo straps, battery, charger etc.
