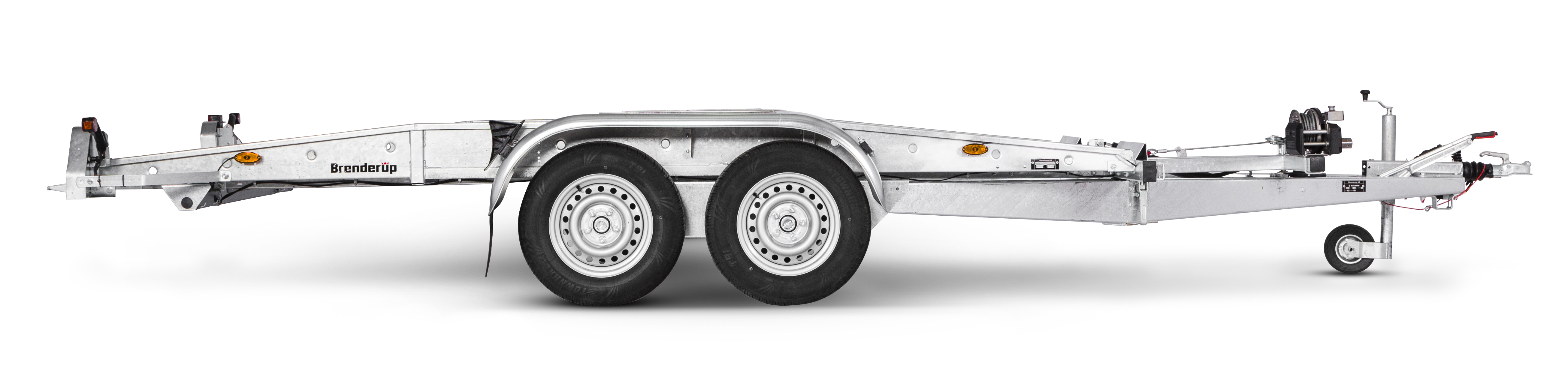

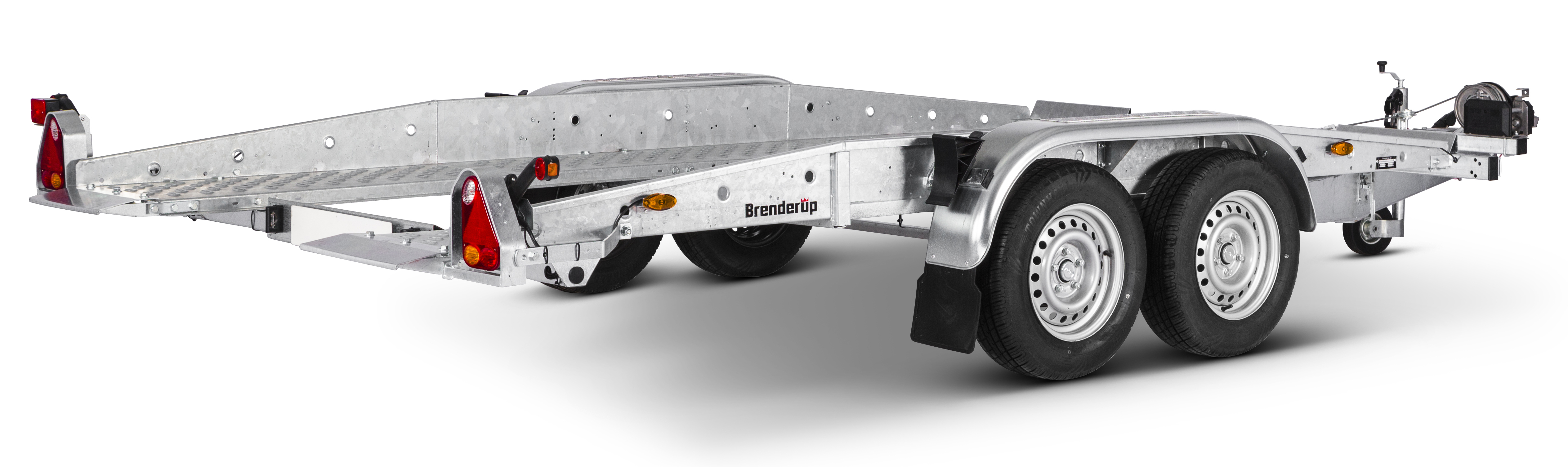

2513GT
- Winch and hydralic tip is standard
- Standable mudguards
- Welded chassi
Features and benefits

Standable mudguards
Standable mudguards and extra steps for easier access to the machine loaded on the trailer

Anti slip ramps
Anti slip ramps for secure loading of your car

Jockey wheel
Jockey wheel included as standard equipment for easy handling of trailer when not connected to the car

Hydraulic tip
Hydraulic tip as standard equipment

Low loading angle
A low loading angle makes it easier to load and unload cars

Welded and bolted chassi
A combination of welded parts with the benefits of the bolted parts for easy adjustments.

13-pol coil cable
A spiral cable will always try to retract to their shortest length so it will end up suspended in mid air between the trailer and the ground, the design of the cord can have that extra flexibility without putting stress on the wire inside.
Specifications
2513GT | |
Article number | 118846 |
Gross weight (kg) ? | 2500 |
Load (kg) ? | 1970 |
Unladen weight (kg) | 530 |
Int dimensions (cm) ? | 403x194x24 |
Ext dimensions (cm) ? | 606x244x85 |
Loading height (mm) | 470 |
Type of sidepanel | Steel |
Foldable back panel | No |
Foldable front panel | No |
Foldable side panels | No |
Tip | Yes |
Type of tip | Hydraul-manual |
Tip-protection | No |
Loading angle (°) | 12 |
Winch | Manual |
Brakes | Yes |
Number of axels | 2 |
Tyre dimension | 195/70R14 |
No of wheelbolts | 5 |
Rim type | Steel |
Mudguards | Standable |
Coupling | Steel sheet |
Plug connection type ? | Spiral |
Adaptercable | 13 |
Jockey wheel | Yes |
