New

AT2000HBTB

Features and benefits

Ramps storage

Easy storage of ramps behind the number plate, short ramps are included as standard equipment

Flexible positioning of winch

Prepared for easy and flexible attachment of winch and winch stand.

Wide ramps on platform

The wide ramps on the platform makes it easy to transport both big and small cars

Low loading angle

A low loading angle makes it easier to load and unload cars

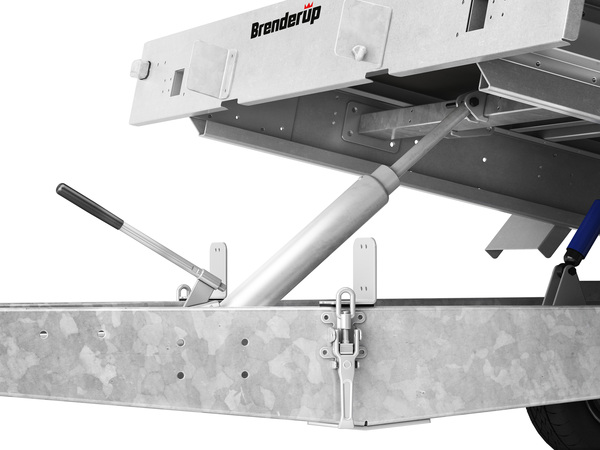

High pressure gas shocks

The trailer is equipped with convinient gas shock absorbers for smooth loading and unloading of your car when using the tilt function

13-pol coil cable

A spiral cable will always try to retract to their shortest length so it will end up suspended in mid air between the trailer and the ground, the design of the cord can have that extra flexibility without putting stress on the wire inside.

Specifications Accessories Features and benefits

Specifications

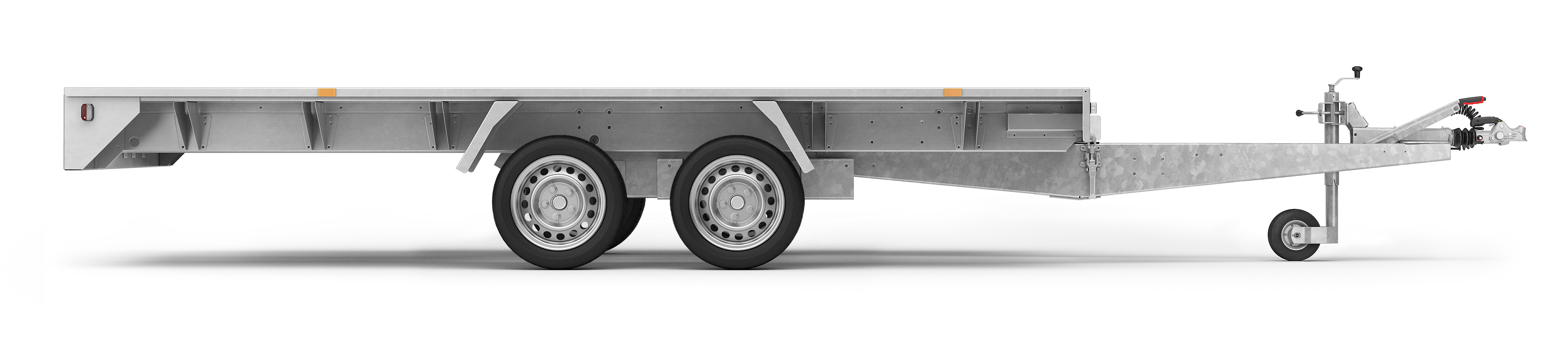

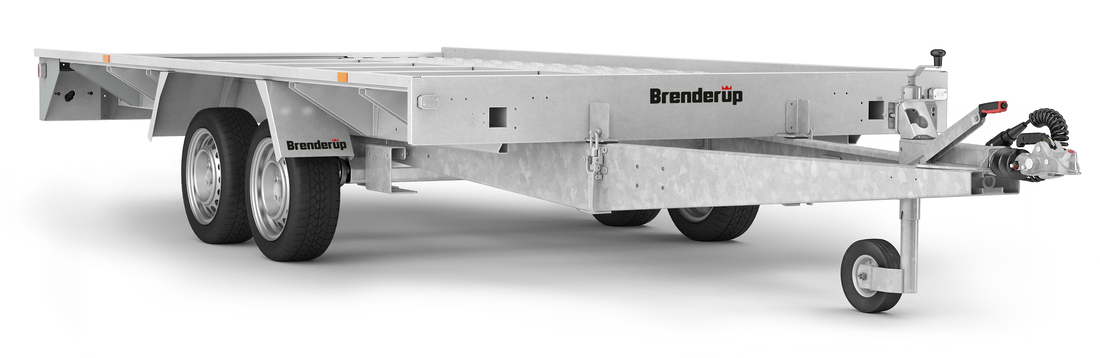

AT2000HBTB
Article number 312400
Gross weight (kg) ? 2000
Load (kg) ? 1380
Unladen weight (kg) 620
Int dimensions (cm) ? 394x200x70
Ext dimensions (cm) ? 593x207x102
Loading height (mm) 700
Tip Yes
Type of tip Gas spring
Tip-protection No
Loading angle (°) 10
Ramp 2 x (1,1x0,25m)
Winch No
Brakes Yes
Number of axels 2
Tyre dimension 195/50R13C
No of wheelbolts 5
Rim type Steel
Coupling Steel sheet
Plug connection type ? Spiral
Adaptercable 13
Jockey wheel Yes

Useful with

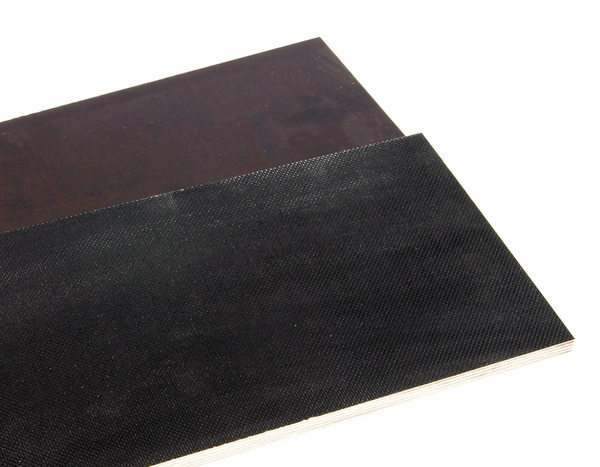

  • Plywood floor

    Kit with 2 pcs 2000x915x12mm and cross support, for ATHB
    Art nr310757

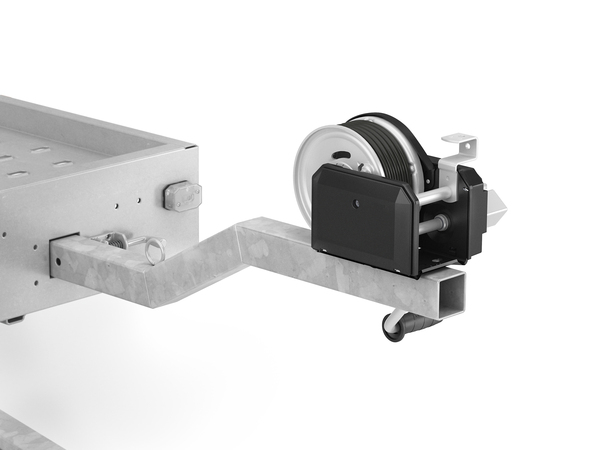

  • Winchkit AL-KO 900

    Winch stand with winch, wire & mounting kit for AT / HB trailer
    Art nr310933

  • Transparts trailer lock

    Trailer lock with disc pad lock for casted couplings. Fits all larger cast ball couplings (from 2000kg upwards). For ball coupling in sheet metal or smaller cast 313945.
    Art nr312519

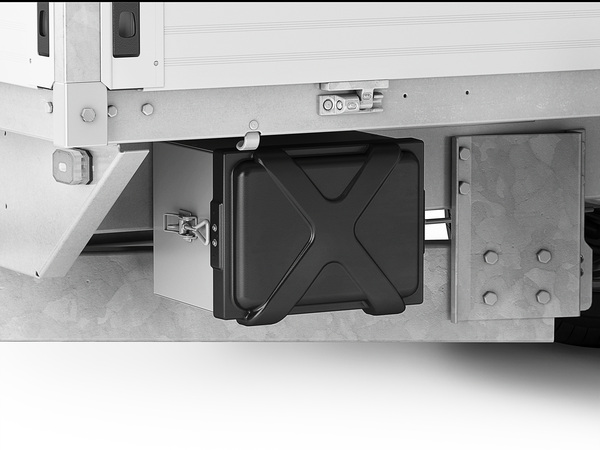

  • Toolbox

    Med plastlock. S5000 komplett
    Art nr309631

  • Jockey wheel

    200x50mm Ø48mm, solid rubber with steel rim, AL-KO. Max vertical load 300kg
    Art nr104609
